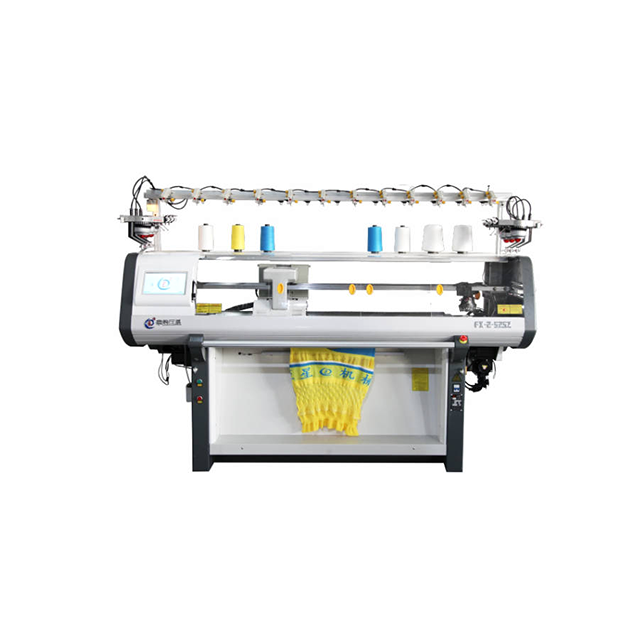

Needle spacing：7G、9G、12G、13G、14G、15G、16G
Number of stitches/width：52inches、80inches
Braiding system：Single head double system、2 + 2 nose matching
Machine speed：Top speed 1.7 m/s; 128 programmable speeds
Cradle：Servo motor drive, maximum 2 inches
Needle selector：6-8 segment electronic needle selector
Coil density： 128 step motor control density, adjustable range 0-650
Pull：High Roller device makes cloth more even and smooth
Deputy Roller (optional)
Intelligent base plate，Zero waste yarn can be woven，No need to dismantle waste yarn（Matching）
Method of raising needle：The motor drives the needle lifting to reduce the wear of the triangle and the needle selector
Yarn Feeder：Roller yarn feeding device, or ordinary yarn storage device, to ensure timely yarn delivery
Gauze mouth：The 2 * 8 nozzles are arranged on the left and right sides of the 4 double-sided guides
Transmission：Belt Drive, AC electric servo motor control
Data input：Input data through U disk and computer connection
Self-stopping device：Broken Yarn, winding, firing pin, number of pieces completed, overload, designated line parking, program error, safety door not closed, etc.
Safety devices：Emergency stop device, cut off power supply device, alarm indicator, the whole machine covered with noise reduction and dust-proof cover
Floor：300 all-motor base plate
Wire Trimmer：Single side scissors clip (optional)
Control system：
1、Raynen systems
2、A8 processor to maximize hardware upgrade potential. New Swipe page
Function to increase the user's convenience to modify parameters. Pattern reorganization optimization, two-way needle closing
Technology
3、1024X600 screen resolution, capacitive display, graphical interface,system extended memory up to 1G, can be stored in a large number of pattern files, according to production requirements with
Method is called
4、Through the screen check can view the working status of the triangle and the actual location, and in the machine the utility model can be adjusted when the utility model runs, so as to maximize the convenience of operation
5、The control system (software part) and plate-making system upgrade is convenient and free of charge
6、Multi-language version can be switched (Chinese, English, Russian, Bengali and other languages)
Size and weight of the machine：
52 inches Long * wide * high2400*800*1700Mm NET weight:500Kg
80 inches Long * wide * high3150*800*1700Mm NET weight:750Kg
Power supply unit：Voltage:AC 220V/380V Frequency:50HZ/60HZ Power:1.2KW
